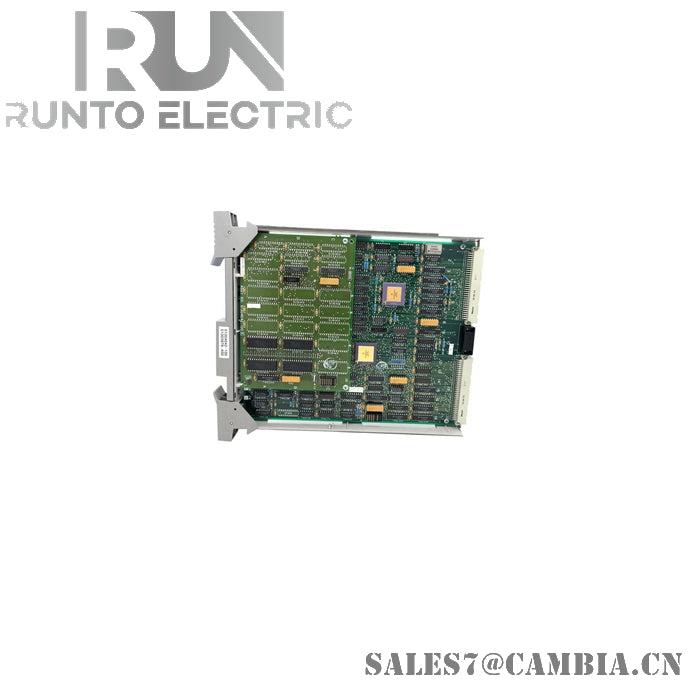

10201/2/1 |Honeywell | Fail-safe Digital Output Module

Description

• Manufacturer: Honeywell
• Product No.: 10201/2/1
• Product Type: Fail-safe Digital Output Module

Specifications

• General Type Number: 10201/2/1
• Model Type: 11501
• Approvals: CE, TüV, UL
• Software Versions: ≥ 3.00
• Space Requirements: 4 TE, 3 HE (equivalent to 4 HP, 3U)
• Power Requirements:
  • 5 VDC: 25 mA
  • 24 VDC (internal): 25 mA
  • 24 VDC (external): 70 mA (without output load)
• Number of Output Channels: 8
• Output Specification:
  • 24 VDC solid-state source
  • Short-circuit proof
• Maximum Current per Channel: 550 mA*
• Maximum Lamp Load: 120 mA (2.9 W)*
• Maximum Load Capacitance: 1 μF
• Voltage Drop at 500 mA: < 2.0 VDC*
• Off Current: < 0.1 mA
• WDG Input Current: 8 mA
• Key Coding: See 'Key Coding' data sheet
• Module Code: Holes A9, C9
• Rack Code: Large Pins A9, C9
• Dimensions: 1" x 8" x 6" (3 cm x 20 cm x 15 cm)
• Weight: 0.15 kg
• Shipping Weight: 2 kg
